Step by Step Guide
① Download and register in the correct app
Search for [iGarden Robotics App], download, register an account, and log in.
(Note: The pool cleaner K is compatible with iGarden Robotics App. Some customers mistakenly download “iGarden App” from the App Store, which won’t pair.)
Download QR Code

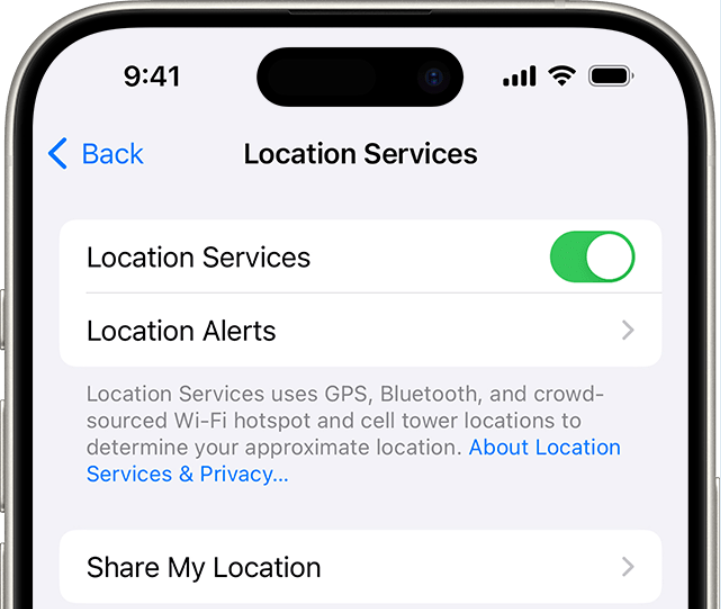

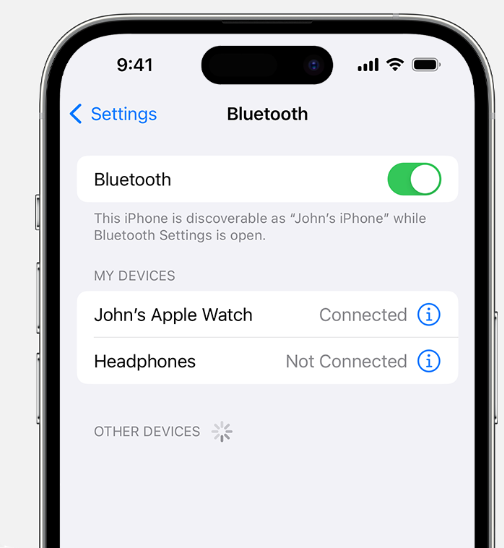

② Enable Bluetooth & Location Services
Turn on Bluetooth and location services via your phone's control center or system settings.
③ Ensure you're connected to a 2.4 GHz Wi‑Fi network in a strong-signal area.
During pairing, both your phone and the robot must be on the same 2.4 GHz Wi‑Fi network.
After pairing, you may switch your phone to another Wi‑Fi or mobile network.

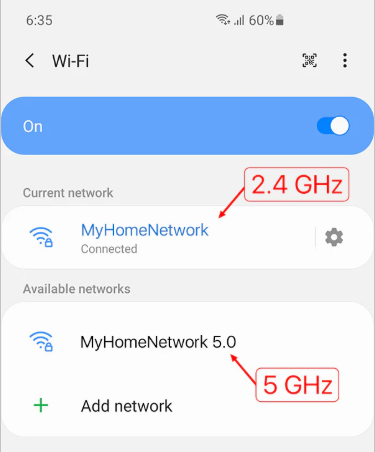

a. How to check if your phone is on 2.4 GHz:
--5 GHz networks often include "5G" in their name.
If both 2.4 GHz and 5 GHz share the same name, you'll need to check frequency settings:
--On Android: Settings → Wi‑Fi → select your connected network and view frequency.
--On iPhone: Log into your router’s admin page and check from there.
b. If you can't connect your phone to 2.4 GHz: Use another phone to create a 2.4 GHz hotspot.
--On Android: In hotspot settings, set the frequency band to 2.4 GHz (setting steps vary by brands).

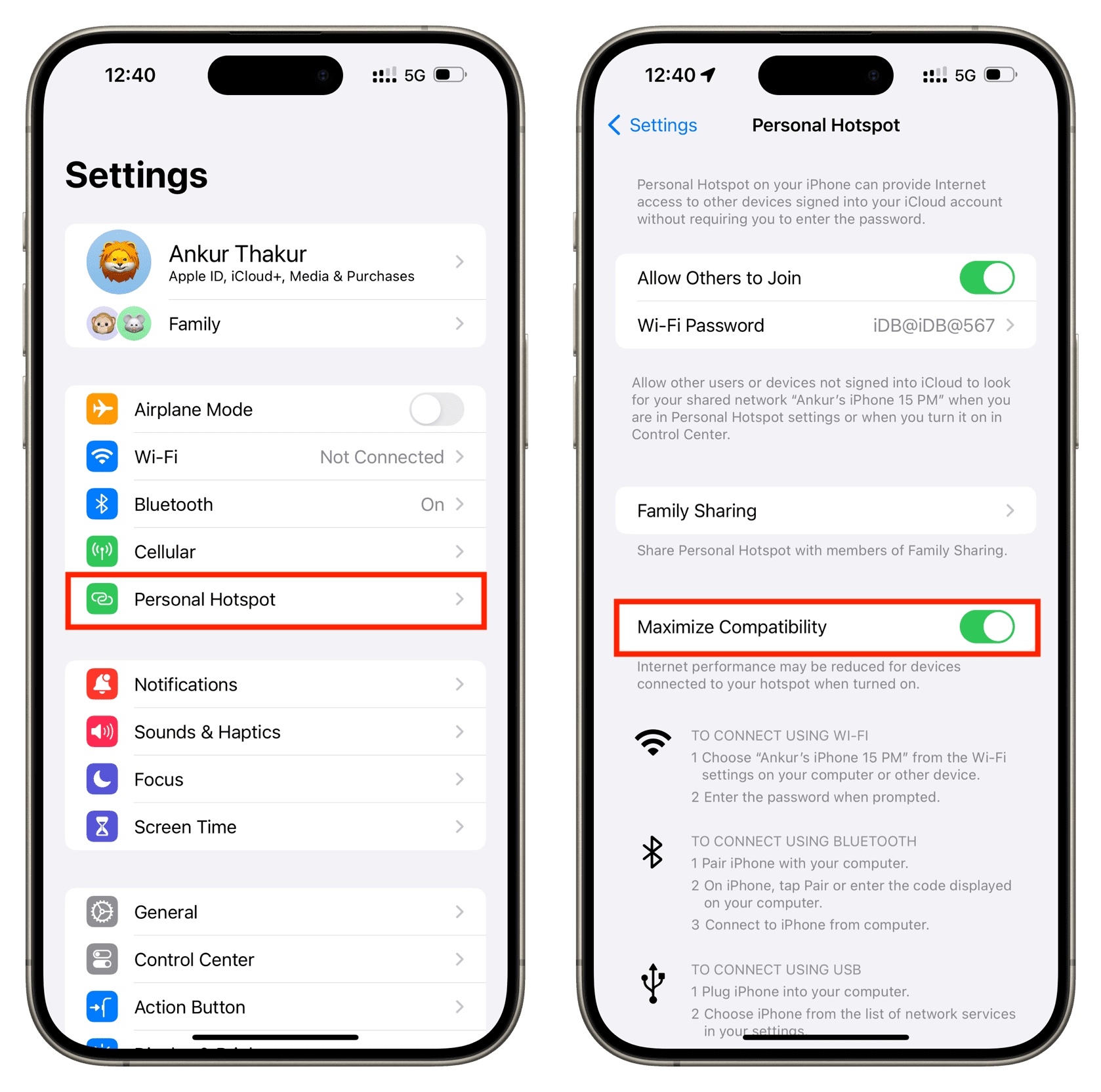

--On iPhone 12 or later: Settings → Personal Hotspot → enable "Maximize Compatibility" to enable 2.4 GHz. iPhone 11 and earlier use 2.4 GHz by default.

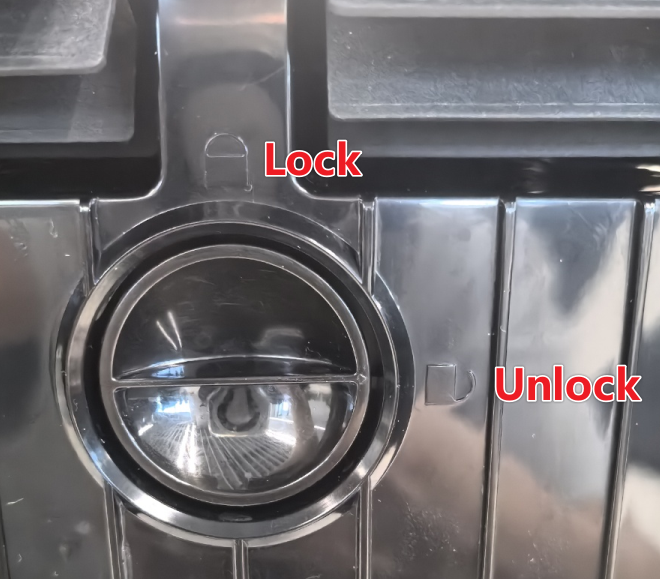

④ Turn on the robot Turn the bottom Switch from “Lock” to “Unlock.”
You'll hear a beep, and the control panel screen will light up.
⑤ Enter pairing mode on the robot

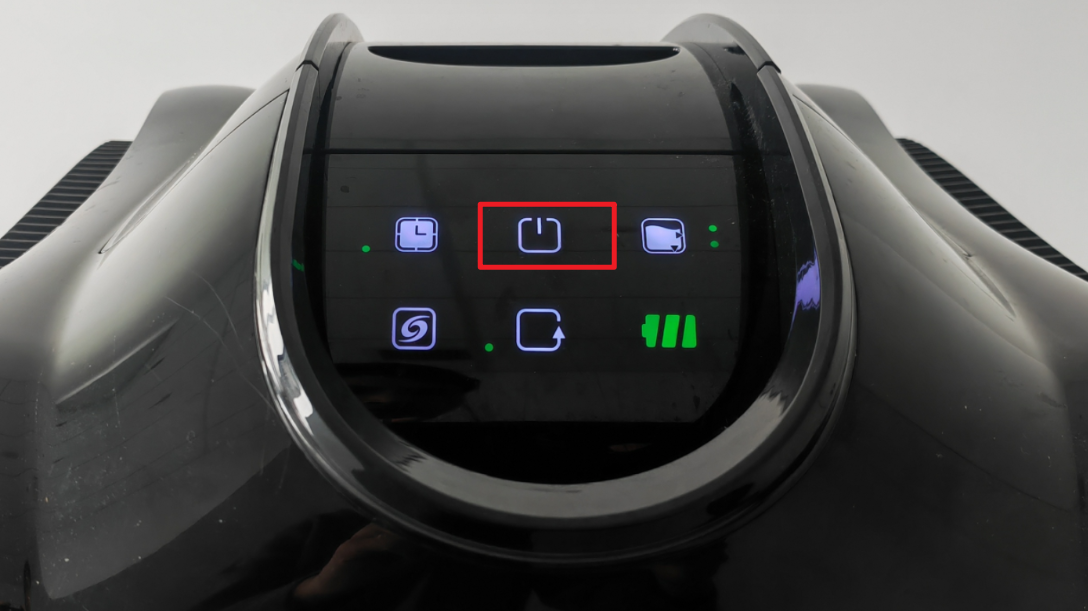

a. After power on, the power button's LED (middle button on the first row) should blink.
(If it goes off after inactivity, hold the power button for 3 seconds until you hear a beep and the LED starts blinking again.)

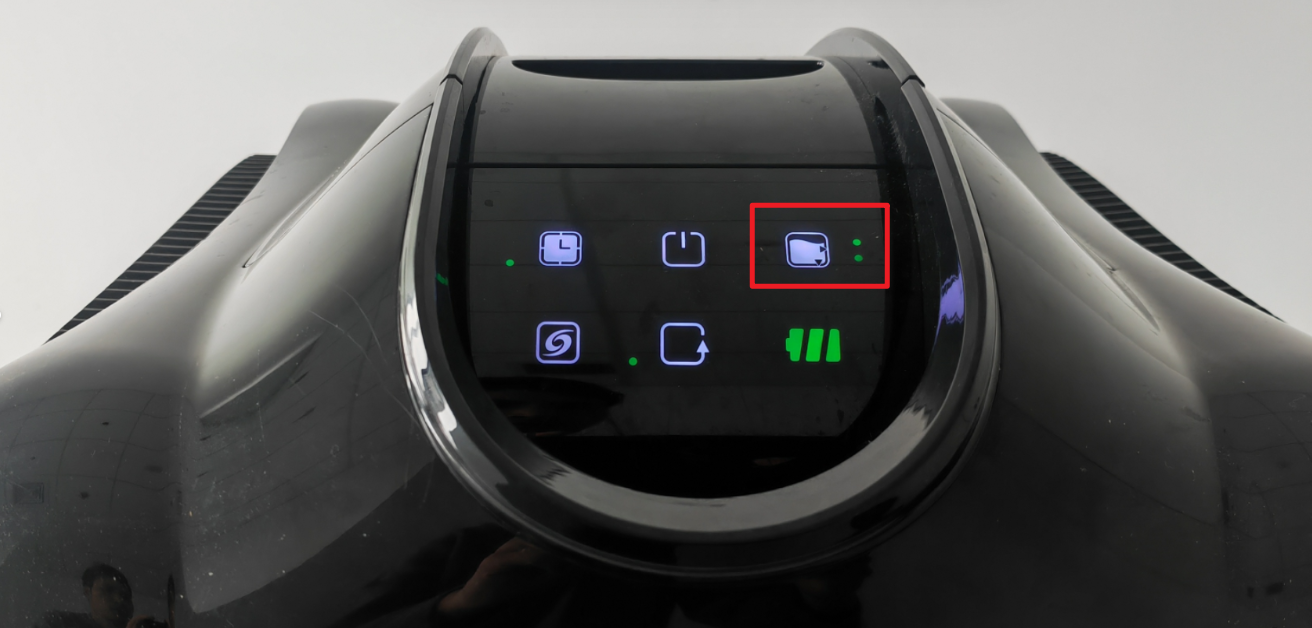

b. While the power button is blinking, hold the “Cleaning Mode” button (third button in the first row) for 3 seconds. After a beep, the robot enters app pairing mode.

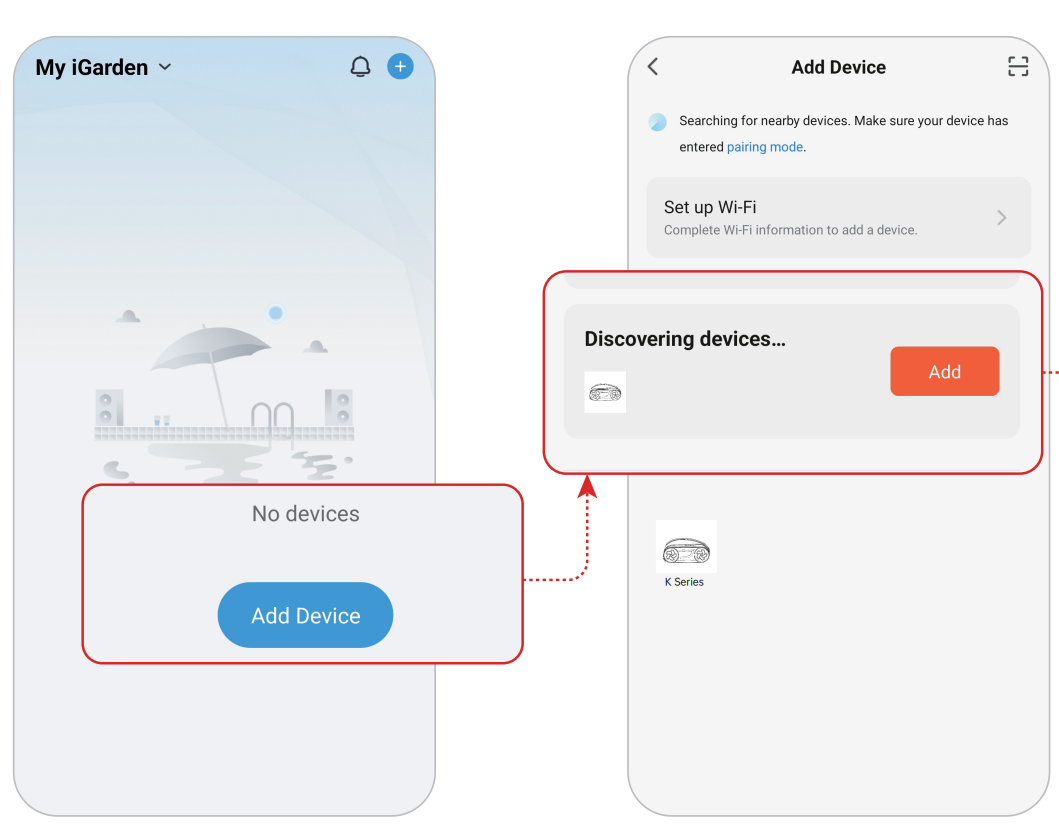

⑥ Pair through the iGarden Robotics app
Open the app → tap “Add Device” → wait for the robot to appear in nearby devices.

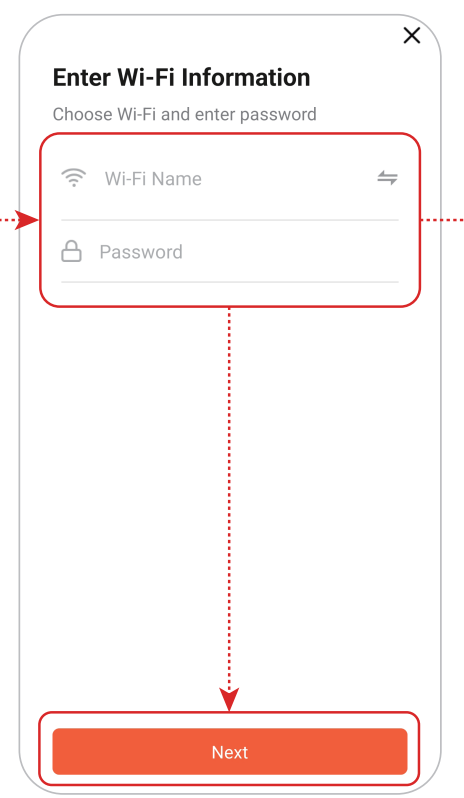

⑦ Connect robot to Wi‑Fi
Tap “Add” on the device → enter Wi‑Fi name and password. Ensure this matches the phone's Wi-Fi network.

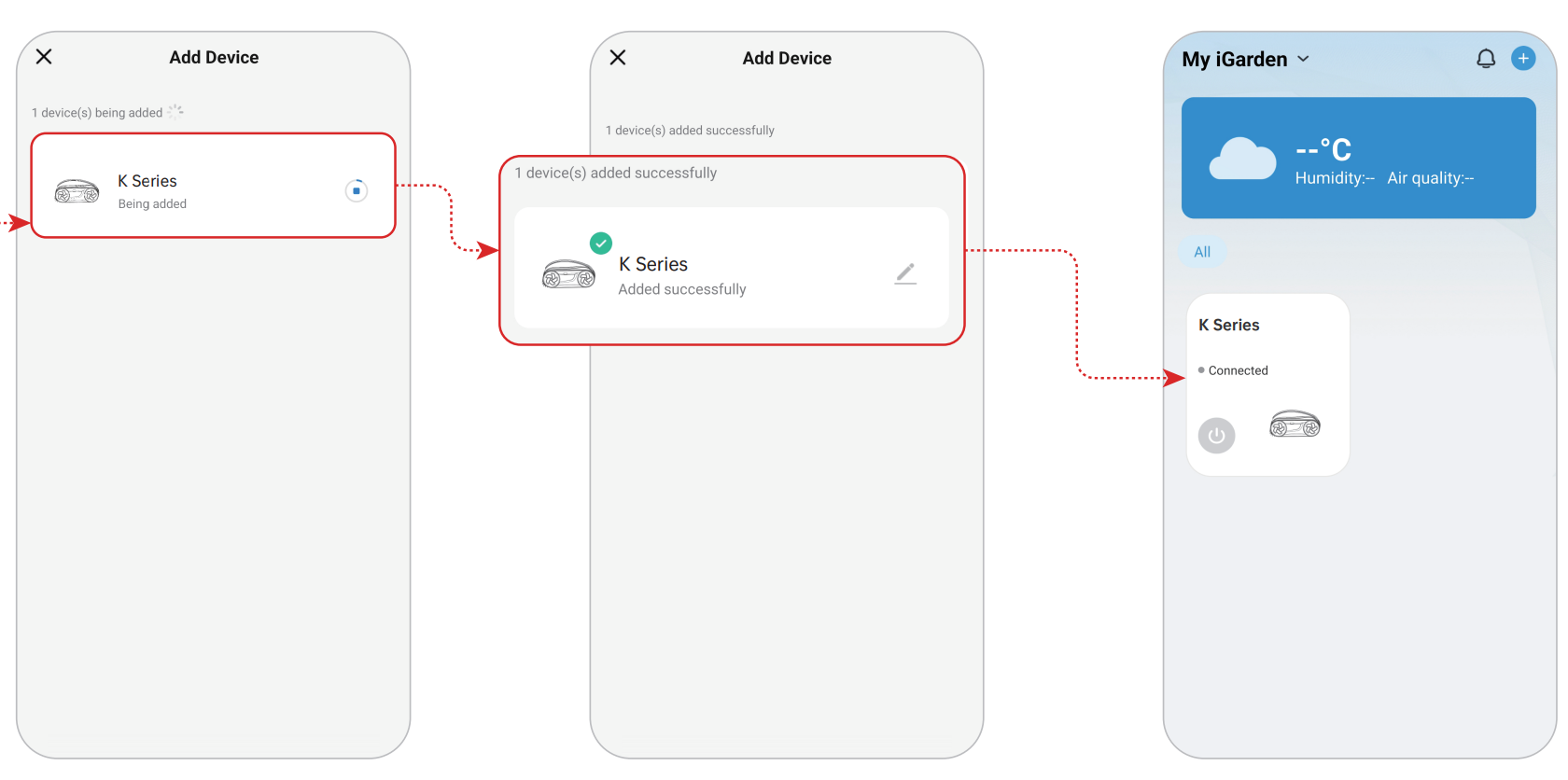

⑧ Pairing in progress
A blue progress circle will appear. Once pairing is complete, the app returns to the main screen and shows the robot as “Connected.”
If pairing fails after the circle completes, or it stalls for over 2 minutes: Restart the robot by turning the bottom switch, and try pairing again.
